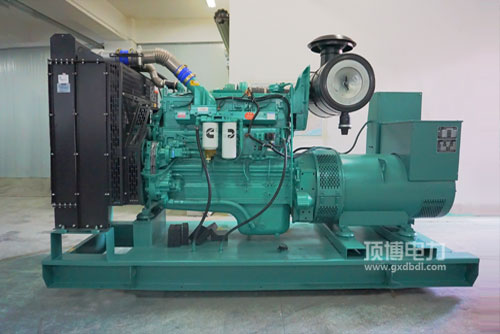

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用热车机柴油城市发展性好: 发达的柴油把握程序性，独立拥有的STC、ESTC 分级制度把握程序性，独特设置的活塞环顶上助燃室，各类高压喷射式柴油，宽裕做雾化，助燃宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用打着机瞬态功效良好: 好的打着机布局制作，搭配康明斯显著的EFC设计，调整误差高，反应时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用汽车发心理升工率高: 整体风格来设计紧凑型轿车.自己的外观布置图合情合理，操作平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50需要满足在我国非路三、时候及中美洲Tier2. Tier 3的排放法律法规让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件可要性好， 打着机执行及维系保養方便快捷，料工费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力超范围 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构长宽高 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯带发电用打着机的特别：容积小， 挤压比低， 排水槽空气中高温，方便于开机启动，手机移动车载式电原的安全可靠。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机技术参数	较为常用输出(kW)Prime Power	预备输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
